Installing ROS 2 Iron on Ubuntu

Check out our Humble Hawksbill tutorial to install the latest LTS release.

Though it’s possible to install ROS 2 from source or archive, the easiest way to get ROS running on your Ubuntu machine is to install its corresponding Debian packages using apt, a command line utility for installing and managing packages on Linux distributions.

In this tutorial, we’ll walk you through installing the Debian packages for ROS 2 Iron Irwini on Ubuntu Jammy (22.04 LTS).

Set up a UTF-8 system locale

Before installing anything, you’ll need to make sure your system locale supports UTF-8. Locale issues can cause unexpected problems further down the line, when using various ROS tools and libraries.

Run $ locale in a terminal window to view your currently installed locale – if UTF-8 appears in the listed output, you’re all set!

Otherwise, you'll need to set up your locale in one of two ways – choose a locale on your system or generate a new one.

$ locale -a # on system with UTF-8 locales
C
C.UTF-8
de_AT.utf8
de_BE.utf8
de_CH.utf8
en_US.utf8
...
POSIX


language-bash

If your system doesn’t have any UTF-8 locales set up already, generate the desired locale yourself:

$ locale -a # on system without UTF-8 locales
C
POSIX

$ sudo apt update && sudo apt install locales
$ sudo locale-gen en_US.UTF-8

$ locale -a
C
en_US.UTF-8 # newly generated locale
POSIX


language-bash

Finally, update your system with your desired option (e.g. en_US.UTF-8):

$ sudo update-locale LC_ALL=en_US.UTF-8 LANG=en_US.UTF-8
$ export LANG=en_US.UTF-8


language-bash

Open a new terminal window, and run $ locale again to verify that your system has been successfully updated.

Set up your source repos

Ubuntu programs are stored in repositories that make installing new software easy and secure. Ubuntu’s four main repositories are as follows:

• Main (Canonical-supported open-source software)
• Universe (community-maintained open source software)
• Restricted (proprietary device drivers)
• Multiverse (proprietary software)

For the purposes of installing ROS, we need to enable the Ubuntu Universe repository:

$ sudo apt install software-properties-common
$ sudo add-apt-repository universe


language-bash

Now you can add the ROS 2 repository to your system. Authorize the public GPG (GNU Privacy Guard) key provided by ROS, then add the ROS 2 repository to your sources list:

$ sudo apt update && sudo apt install curl gnupg lsb-release
$ sudo curl -sSL https://raw.githubusercontent.com/ros/rosdistro/master/ros.key -o /usr/share/keyrings/ros-archive-keyring.gpg
$ echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/ros-archive-keyring.gpg] http://packages.ros.org/ros2/ubuntu $(source /etc/os-release && echo $UBUNTU_CODENAME) main" | sudo tee /etc/apt/sources.list.d/ros2.list > /dev/null


language-bash

Install ROS 2 packages

Install your ROS 2 Iron desktop setup with the following commands:

$ sudo apt update # update your apt repo caches
$ sudo apt install ros-iron-desktop


language-bash

This will install a few different components like the core ROS libraries, developer tools like RViz, and a set of beginner-friendly tutorials and demos to help you get started.

Check out the official REP for a full breakdown of the ROS 2 packages that are included in each distribution (i.e. core, base, desktop).

Source your setup file

Typically, you would need to source your setup file every time you open a terminal to use ROS:

$ source /opt/ros/iron/setup.bash


language-bash

To save yourself the time, you can automatically trigger this step every time you launch a new shell. Run the following commands if you’re using a bash shell:

echo "source /opt/ros/iron/setup.bash" >> ~/.bashrc
source ~/.bashrc


language-bash

Run the following commands if you’re using a zsh shell:

echo "source /opt/ros/iron/setup.zsh" >> ~/.zshrc
source ~/.zshrc


language-bash

Run some examples

After completing the desktop install, let’s make sure that our APIs are working properly.

**Run the example C++ talker **at /opt/ros/iron/lib/demo_nodes_cpp/talker:

$ ros2 run demo_nodes_cpp talker


language-bash

The output should confirm that the talker is successfully publishing messages:

[INFO] [1652382860.246687611] [talker]: Publishing: 'Hello World: 1'
[INFO] [1652382861.250208871] [talker]: Publishing: 'Hello World: 2'
[INFO] [1652382862.246508551] [talker]: Publishing: 'Hello World: 3'
...


language-bash

In another terminal window, **run the example Python listener **at /opt/ros/iron/lib/demo_nodes_py/listener:

$ ros2 run demo_nodes_py listener


language-bash

The output should confirm that the listener is hearing the published messages:

[INFO] [1652382936.495044030] [listener]: I heard: [Hello World: 1]
[INFO] [1652382937.478216343] [listener]: I heard: [Hello World: 2]
[INFO] [1652382938.487370309] [listener]: I heard: [Hello World: 3]
...


language-bash

Both the C++ and Python APIs are working properly!

NOTE: If you’re experiencing issues here, make sure that you’ve enabled multicast – the network interface needs this in order to communicate via DDS.

Run the following commands in two separate terminal windows:

$ ros2 multicast receive
$ ros2 multicast send


language-bash

If the first command does not return a successful output (i.e. Received from xx.xxx.xxx.xx:43751: 'Hello World!'), try updating your firewall configuration:

$ sudo ufw allow in proto udp to 224.0.0.0/4
$ sudo ufw allow in proto udp from 224.0.0.0/4


language-bash

Then, restart your terminal and try starting up your talker and listener again.

What's new in Iron Irwini

With the Iron Irwini release, you can programmatically fetch type descriptions from remote nodes at runtime. Every type description now includes an associated hash, ensuring that you have the correct type descriptions to decode your ROS messages. Check out our announcement to learn more..

You can also record ROS 2 data to MCAP files (.mcap) by default, for easy analysis with third-party integrations like Foxglove. Not only are MCAP files smaller (and more performant!) than standard ROS 2 files, they’re also completely self-contained (unlike ROS 2 files that draw from message definitions living on your hard drive). Check out our announcement to learn more..

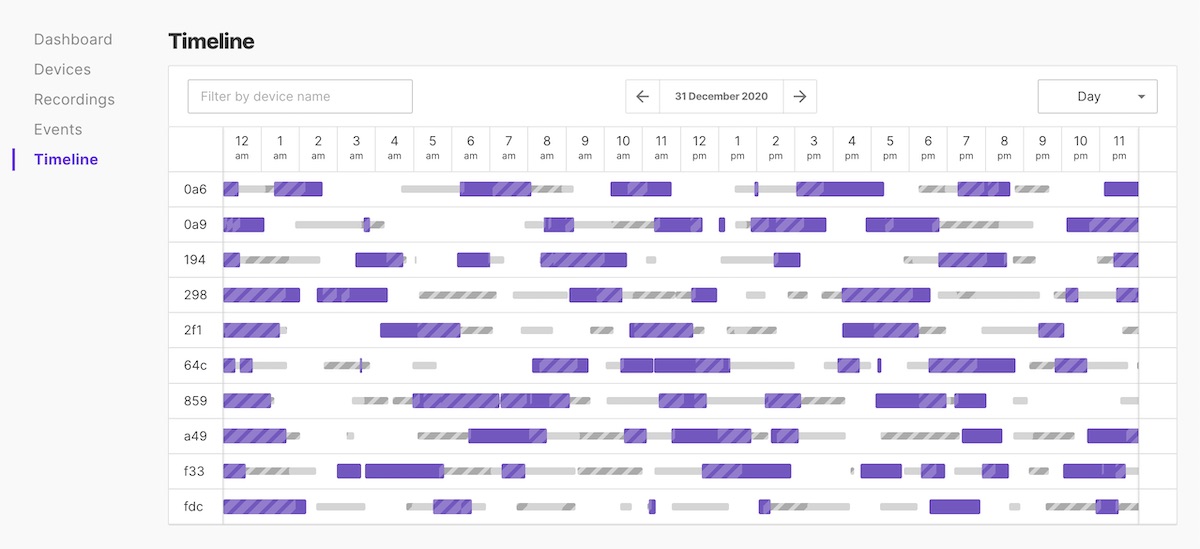

Import these files directly into Foxglove, so your whole team can collaborate on organizing and tagging your data:

You can also drag and drop them into Foxglove for instant rich visualizations. Load up your data to view camera images, display 3D markers, review log messages, and more:

What’s next

Continue with the official ROS 2 tutorials to configure your environment, record data, and create a workspace and packages.

To uninstall ROS 2, remove the repository from your system completely:

$ sudo apt remove ~nros-iron-desktop && sudo apt autoremove
$ sudo rm /etc/apt/sources.list.d/ros2.list
$ sudo apt update
$ sudo apt autoremove
$ sudo apt upgrade # for previously shadowed packages


language-bash

Join our Discord community to ask questions and learn more.

Additional resources

• ROS 2 Iron docs and tutorials
• Ubuntu repositories
• ROS 2 distribution variants
• MCAP file format
• Foxglove docs
